If you’ve ever asked yourself what is a heat sink, the answer is simpler than you might think. A heat sink is a device that helps cool down electronic components, like CPUs and GPUs, by drawing heat away and dispersing it into the surrounding air. Without this crucial component, your computer, gaming console, or even LED lights could quickly overheat and lose performance. In this article, we’ll break down how heat sinks work, why they’re important, and where you’ll commonly find them in everyday technology.
What Is a Heat Sink?
A heat sink is a key component in electronic devices that helps manage and remove excess heat produced during operation. Its main purpose is to prevent overheating, which can damage components or reduce performance. Typically, heat sinks are placed on heat-producing parts such as processors, GPUs, or power chips.
Main Function

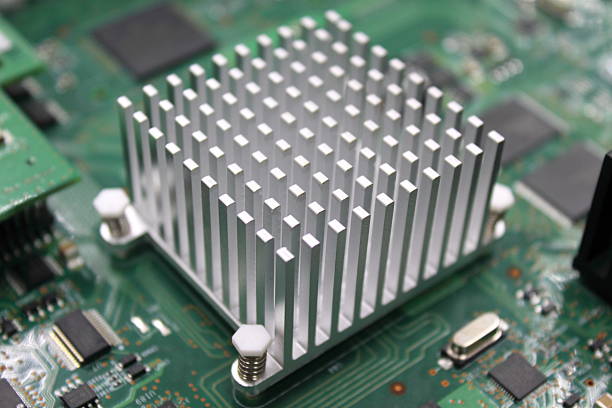

The heat sink takes heat from the component and spreads it through its metal body. It then releases the heat into the air. Fins or pins are added to increase surface area and help the heat escape more efficiently.
Why It Matters
- Prevents overheating and damage: Heat sinks prevent overheating by keeping electronic components at safe temperatures, protecting them from damage.
- Maintains performance: Heat sinks help maintain performance by keeping components cool, preventing them from slowing down or throttling due to excessive heat.
- Extends lifespan: Heat sinks extend the lifespan of electronic components by lowering heat levels, reducing thermal stress, and preventing damage.
How Heat Sinks Work
A heat sink prevents electronic components from overheating by absorbing the heat they generate during operation and dispersing it into the surrounding environment. This keeps the device cool and ensures it functions properly.
Here’s how it works step by step:
- Heat absorption (conduction): Heat spreading is when heat moves across the entire surface of the heat sink, increasing the area for cooling and allowing heat to dissipate more efficiently.
- Heat dissipation (convection): The heat sink has many thin fins or ridges that increase its surface area. Air moving over the fins carries heat from the heat sink into the air.
- Optional radiation: A small amount of heat is also released as infrared radiation, though this effect is much weaker than conduction and convection.
This entire process lowers the temperature of the component, helping it run efficiently and preventing damage.
Why it matters
- Keeps electronics from overheating or shutting down.
- Maintains steady performance, especially during heavy workloads.
- Extends the life of components by reducing thermal stress.
A heat sink draws heat away from components and disperses it into the air, keeping devices cool and preventing overheating.
Types of Heat Sinks
Heat sinks, which keep electronics cool, generally fall into three categories: active, passive, and hybrid.
1. Active Heat Sinks
Active heat sinks utilize fans or pumps to remove heat more efficiently. They are ideal for high-performance electronics such as gaming CPUs, GPUs, or servers.
- Pros: Fast and consistent cooling.
- Cons: Can be noisy, consume more power, and are more complex to install.
2. Passive Heat Sinks
Passive heat sinks have no moving parts and rely on natural airflow and heat conduction to cool components. They are commonly used in small devices like smartphones, IoT gadgets, or LED lights.
- Pros: Quiet and highly reliable due to no moving parts.
- Cons: Less effective for high-heat components or in areas with poor airflow.
3. Hybrid Heat Sinks
Hybrid heat sinks combine active and passive methods, such as fans plus large fins, to improve cooling efficiency. They are suitable for high-performance systems that need strong cooling with reduced noise.
- Pros: Efficient cooling with quieter operation than fully active systems.
- Cons: More complex and expensive, with additional parts that could fail.
The best type of heat sink depends on your device’s heat output, noise tolerance, and reliability requirements.
Heat Sink Technology and Materials
Heat sinks are usually made from aluminum or copper because both materials conduct heat very well.
- Copper transfers heat faster than aluminum due to its high thermal conductivity, but it is heavier, more expensive, and harder to shape.
- Aluminum is lighter, cheaper, and easier to manufacture. While it doesn’t conduct heat as well as copper, it still performs effectively in many applications, especially where weight and cost are important.
Comparison
- Aluminum:
- Lightweight and affordable.
- Good heat conductivity.
- Best for devices where weight matters, such as laptops or compact electronics.
- Copper:
- Excellent heat conductivity.
- Heavier and more costly.
- Ideal for high-performance systems that generate a lot of heat.
Recent Developments
Modern heat sinks use advanced materials and designs to cool better. This includes composite metals, vapor chambers, and specially shaped fins that increase surface area. These improvements help remove heat faster, making devices more efficient, reliable, and long-lasting.
Common Applications
1. Computers – CPUs, GPUs, and Chipsets
Heat sinks keep computer processors and chipsets from overheating. This ensures the computer runs smoothly, performs well, and lasts longer.
2. Gaming Consoles and Consumer Electronics
In devices like gaming consoles, smartphones, and other electronics, heat sinks prevent overheating. This protects the components and keeps the devices working properly during long or intense use.
3. LEDs and Lighting Systems
LEDs and other lights generate heat that can affect their brightness and lifespan. Heat sinks remove this heat, helping the lights stay bright, efficient, and long-lasting.
4. Industrial and Automotive Electronics
Electronics in factories, vehicles, and power systems can produce a lot of heat. Heat sinks cool these components to ensure they operate safely and reliably, even in tough conditions.
Advantages of Using Heat Sinks
1. Efficient Heat Dissipation
Heat sinks transfer heat from electronic components to the surrounding air. Their large surface area prevents overheating and keeps devices running smoothly.
2. Longer Device Lifespan
Heat sinks keep electronic components at safe temperatures, which reduces wear and stress from heat. This helps devices last longer and remain reliable.
3. Better Performance and Reliability
Heat sinks enhance performance and reliability by maintaining component temperatures within safe limits, ensuring devices operate efficiently, and minimizing the risk of errors or crashes.
4. Cost-Effective Cooling
Heat sinks offer an easy and effective way to cool devices without requiring extra power or complex systems, making them inexpensive to produce and operate.
5. Versatile Use
Heat sinks are used in many types of devices, including computers, gaming consoles, industrial machines, and automotive electronics. They provide effective cooling wherever components generate heat, helping devices run safely and efficiently.
Heat sinks keep electronic devices cool, helping them perform better, last longer, and operate reliably.
Conclusion
A heat sink is a device that removes excess heat from electronic components, such as CPUs, GPUs, and LEDs. Made from materials such as aluminum or copper, it increases surface area to transfer heat from the device to the air through conduction and convection.
Proper heat management prevents overheating, ensures reliable performance, and extends the lifespan of electronics. Heat sinks are simple but essential devices that keep electronics cool, reliable, and long-lasting, which is increasingly important as devices grow more powerful and compact.
