What is a rotovap
A rotovap is the equipment used in chemistry labs to evaporate liquids from samples efficiently and delicately. The word “rotary evaporator” may be used in the chemical research literature to describe the employment of this technique and apparatus. However, use is frequently denoted by a different language. Moreover, rotary evaporators are also used to make distillates and extracts in molecular cooking. During routine laboratory manipulations, it is very common for the desired compound to dissolve in a solvent. In separatory funnel extractions and column chromatography, solvents are used, and the solvent must be removed to isolate the desired compound. Solvents with lower boiling points than the chemical of interest are frequently used to have their removal mechanisms. Although a solution may theoretically be put on a heat source to boil away the lower-boiling solvent, this method is rarely done. A rotary evaporator is a primary technique for solvent removal in the laboratory.

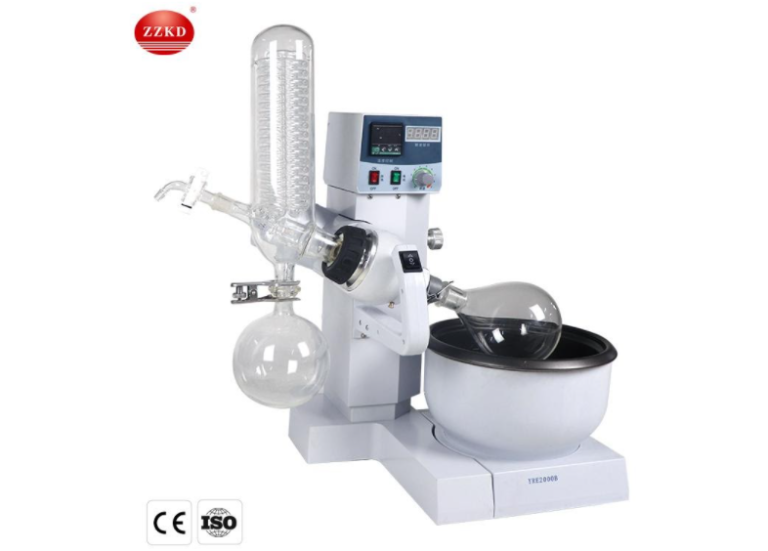

A rotary evaporator is simply a low-pressure distillation device in which a solution in a round-bottomed flask is put in the apparatus’ water bath and spun. When it comes into touch with a water condenser, the solvent vapor condenses and drops into a receiving flask. At the same time, the system is partially evacuated (by a water aspirator or vacuum pump). Because of the lowered pressure in the apparatus, the solvent boils at a lower temperature than usual, and rotating the flask increases the surface area of the liquid and, consequently the rate of evaporation. The concentrated chemical remains in the flask after the solvent is removed. Distillation and rotary evaporation vary in that distillation typically retains the distillate, whereas rotary evaporation typically retains the residue.
For various reasons, rotary evaporation is preferable to evaporation at atmospheric pressure. The method is substantially faster, less than 5 minutes, utilizes lower temperatures (reducing the risk of breakdown), and consumes less energy than boiling with a heat source. A rotary evaporator also effectively removes the last vestiges of residual solvent from a solution because it uses low pressure. A rotovap comes in various sizes, from mini rotovap to large rotovaps.
How rotovaps works
Even though the rotary evaporator appears to be sophisticated, it is rather simple.
A motor unit, a vapor duct, a vacuum system, a heated fluid bath, a condenser with either a coil flowing coolant or a “cold finger,” a condensate-collecting flask, and a mechanical or motorized mechanism are the essential components of a rotary evaporator or “rotovap.” In a rotary evaporator, the motor rotates an evaporation jar or vial that contains the participant’s sample. The vapor duct, a vacuum-tight conduit for removing vapor from the model, rotates around the sample rotation axis. The vacuum system significantly reduces the evaporator system’s pressure. A vacuum system can be made up of a water aspirator with a trap submerged in a cold bath or a regulated mechanical vacuum pump with a cooled trap. A heated fluid bath, usually water, is used to heat the sample.
Depending on the evaporation goals and any propensities the dissolved compounds could contribute to the mixture, the condenser utilized in rotary evaporators can be simple or complicated. The distilling solvent is caught when it re-condenses in the condensate-collecting flask, situated at the condenser’s bottom. The mechanical or motorized mechanism swiftly lifts the evaporation flask from the heated bath.
Evaporation requires sophisticated engineering to remove solvents from a sample adequately. Most rotovaps use a vacuum and pressure control monitor to manage pressure within your system, enhancing evaporation efficiency accurately. This equipment must operate without fail 24 hours a day, seven days a week, in many commercial labs.
When buying a rotovap, consider a few things such as the rotovap price, manufacturer material.
Some general rules for usage of a rotary evaporator
- First, the unit’s solvent collecting flask should always be drained before use to avoid accidentally mixing incompatible chemicals.
- Place the flask containing the solution on the rotary evaporator. The installation of a bump trap keeps the solution from spilling into the condenser by mistake (and being contaminated). It’s always a good idea to start with a clean bump bulb if something goes wrong! The experimenter would then be able to retrieve the solution or solid.
- The flask and the bump trap are secured by a metal or Keck clip. The green one shown below is for ground glass joints that are 24/40. Blue clips that suit 19/22 joints and yellow clips that fit 14/20 joints will most likely be utilized in the lab. You’ll have to pay the price if you breach the bump trap!
- . The motor’s dial controls the speed of the flask spinning. A variable speed sparkless induction motor rotates at 0-220 rpm and produces high continuous torque in a standard rotavap. 7-8 is a decent setting here.
- The aspirator suction has been activated. In most models, the vacuum on/off switch is controlled by twisting a stopcock at the top of the condenser (left side of the above diagram). After removing the solvent, this stopcock is also utilized to exhaust the setup.
- The flask is dropped into the water bath (or the water bath is lifted to submerge the flask in warm water completely). (On most versions, the complete condenser/motor/flask assembly is moved up and down by a handy handle (with a height locking mechanism). The angle of the condenser assembly is frequently adjustable as well. The water bath temperature should not be higher than the solvent’s boiling point!! The bath warmer is not required for tiny volumes of common solvents.
- As the solvent collects on the condenser, it should trickle into the receiving flask. Some solvents are sufficiently volatile to evaporate and go down the drain from the receiving flask. A cooling bath on the receiver or a dry-ice condenser can be utilized to prevent this. In addition, a trap between the vacuum source and the condenser unit can be used.
- The vacuum is released once all of the solvents have evaporated (or whatever is wanted at this time). The flask is removed from the water bath, and the spinning stops.
- After the evaporation is complete, the bump trap must be cleaned and the receiving flask emptied.
Tips and tricks for rotovap evaporator
To avoid scale buildup in the bath that coats the thermistor and heating coils, use distilled water in the heating bath. It is tough to remove and diminishes the bath’s efficiency. Furthermore, regular tap water, especially during the summer months, promotes the establishment of breathtakingly unpleasant algal colonies. The ideal strategy is to replace the water regularly. When working with nitric acid, all usual safety measures must be observed! To clean algal muck from the interior of a coiled water condenser, remove it from the rotavap and immerse the coil in a weak nitric acid solution for a few hours. The rotavap is rebuilt after thoroughly washing the insides.
In conclusion, a rotovap is a useful device used for distillation. The above tricks and tips will guide you on how a rotovap works and the dos and don ts.
